ADG702BRMZ-REEL7 Semiconductor IC Chip CMOS Low Voltage SPST Switches

Brand Name : ADI / MAXIM

Model Number : ADG702BRMZ-REEL7

Place of Origin : original

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 999999

Delivery Time : 1-3 days

Packaging Details : standard

Multiplexer/Demultiplexer Circuit : 1:1

On-State Resistance (Max) : 3Ohm

Channel-to-Channel Matching (ΔRon) : -

Voltage - Supply, Single (V+) : 1.8V ~ 5V

Voltage - Supply, Dual (V±) : -

Switch Time (Ton, Toff) (Max) : 12ns, 8ns (Typ)

PN : ADG702BRMZ-REEL7

Contact Now

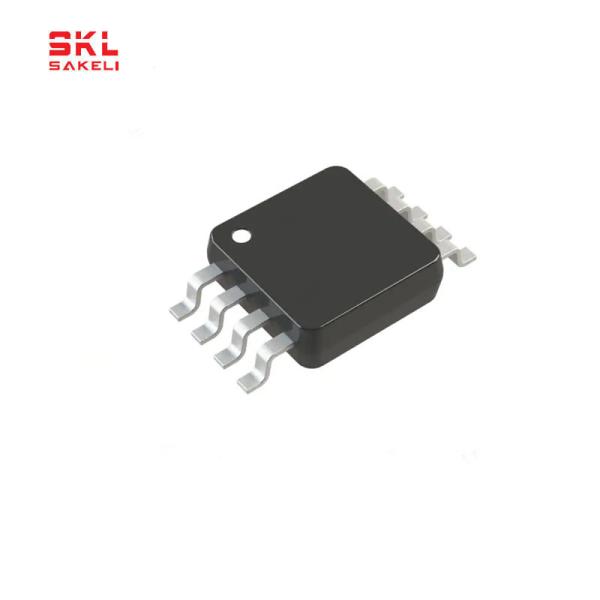

ADG702BRMZ-REEL7 Electronic Components IC Chip CMOS Low Voltage 2 Ω SPST Switches Package 8-MSOP

Product Status
Active
Switch Circuit
SPST - NC
Multiplexer/Demultiplexer Circuit
1:1
Number of Circuits
1
On-State Resistance (Max)
3Ohm
Channel-to-Channel Matching (ΔRon)
-
Voltage - Supply, Single (V+)
1.8V ~ 5V
Voltage - Supply, Dual (V±)
-
Switch Time (Ton, Toff) (Max)
12ns, 8ns (Typ)
-3db Bandwidth
200MHz
Charge Injection
5pC
Channel Capacitance (CS(off), CD(off))
17pF, 17pF
Current - Leakage (IS(off)) (Max)
10pA (Typ)
Crosstalk
-
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package
8-MSOP

FEATURES
1.8 V to 5.5 V single supply
2 Ω (typical) on resistance
Low on resistance flatness
–3 dB bandwidth > 200 MHz
Rail-to-rail operation
Fast switching times
tON 18 ns
tOFF 12 ns
Typical power consumption < 0.01 μW
TTL/CMOS-compatible
APPLICATIONS
Battery-powered systems
Communications systems
Sample-and-hold systems
Audio signal routing
Video switching
Mechanical reed relay replacement
